ScienceBeam eWave8 EEG System

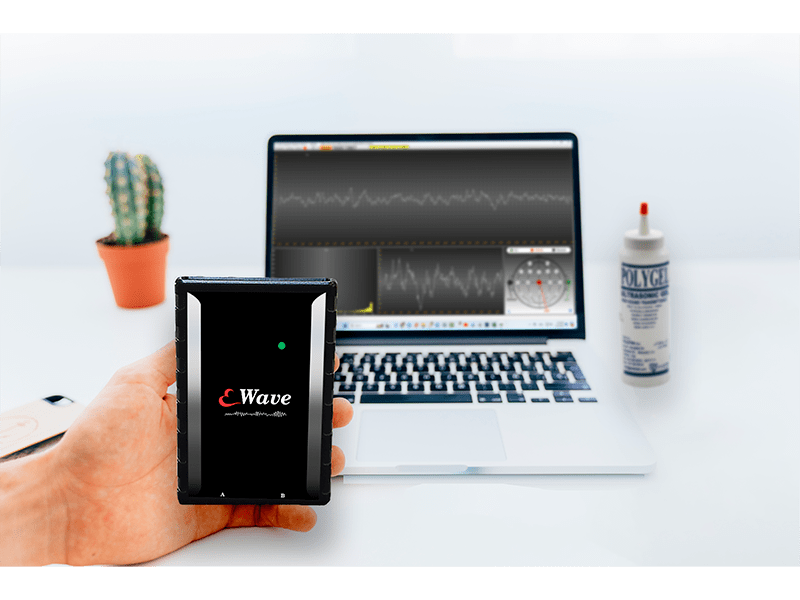

ScienceBeam eWave 8 wireless neurofeedback and biofeedback device

8-Channel Wireless EEG Neurofeedback and Biofeedback System

Professional 8-Channel Wireless EEG Neurofeedback and Biofeedback System

8 EEG Channels 24-bit ADC 15h Battery 138g Weight

eWave8 is a professional 8-channel wireless EEG neurofeedback system with integrated biofeedback for clinics, hospitals and neurotherapy professionals. It combines portable EEG acquisition, real-time feedback, EEG assessment tools and eLife software in one clinical workspace.

Ministry of Health Approved ISO 13485 CE Certified 18-Month Warranty

EEG Neurofeedback

Non-invasive brain self-regulation training.

Neurofeedback is a non-invasive method for training brain self-regulation through real-time EEG feedback. With eWave 8, therapists can target specific frequency bands, define therapeutic thresholds and monitor learning progress in real time within a professional neurofeedback workflow.

  • — Precise targeting of frequency bands (Delta, Theta, Alpha, SMR, Beta, Gamma)
  • — Define therapeutic Threshold and Reward levels
  • — Simultaneous visual and auditory feedback
  • — Real-time monitoring of brain learning progress
  • — Fully personalized treatment for each client
Neurofeedback therapy visualization for eWave 8

Clinical Neurofeedback Applications

Clinical applications for neurofeedback therapy

ADHD and hyperactivity support

Regulation of Theta and Beta brain waves to support focus, reduce impulsivity and improve behavioral control in children and adults.

Anxiety and stress regulation

Training increased Alpha waves in frontal regions to reduce arousal and calm the nervous system.

Depression protocols

Alpha asymmetry regulation protocols in the frontal lobe to support mood regulation and motivation.

Sleep disorder protocols

Strengthening SMR waves (12–15 Hz) to improve sleep quality and reduce chronic insomnia.

Migraine and chronic pain support

Reducing excess Delta waves and regulating sensorimotor cortex activity to help decrease the frequency and severity of episodes.

Brain rehabilitation applications

Retraining damaged neural patterns following stroke, TBI or other neurological injuries within neurofeedback-based rehabilitation protocols.

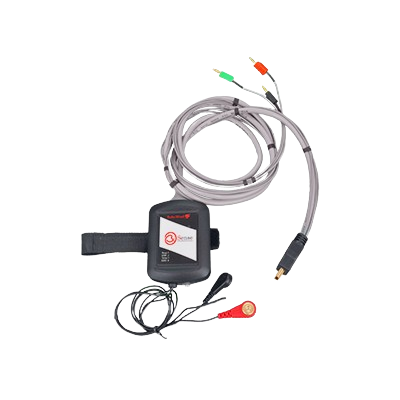

BioSense biofeedback module with physiological monitoring

BioSense | Biofeedback Sensor Module

Observe and train physiological signals with biofeedback.

With the BioSense module connected, eWave8 becomes a complete biofeedback system. The therapist can work with multiple physiological signals within one integrated platform alongside EEG neurofeedback and assessment tools.

  • — GSR — skin conductance and emotional responses
  • — BVP / HRV — heart rate and heart rate variability
  • — Temperature — peripheral body temperature
  • — Respiration — breathing pattern monitoring
  • — EMG — surface and specialized muscle activity
  • — Pelvic floor probes — vaginal and rectal

Applications: Used in treatment of stress, chronic pain, anxiety disorders, muscular rehabilitation and pelvic floor dysfunction.

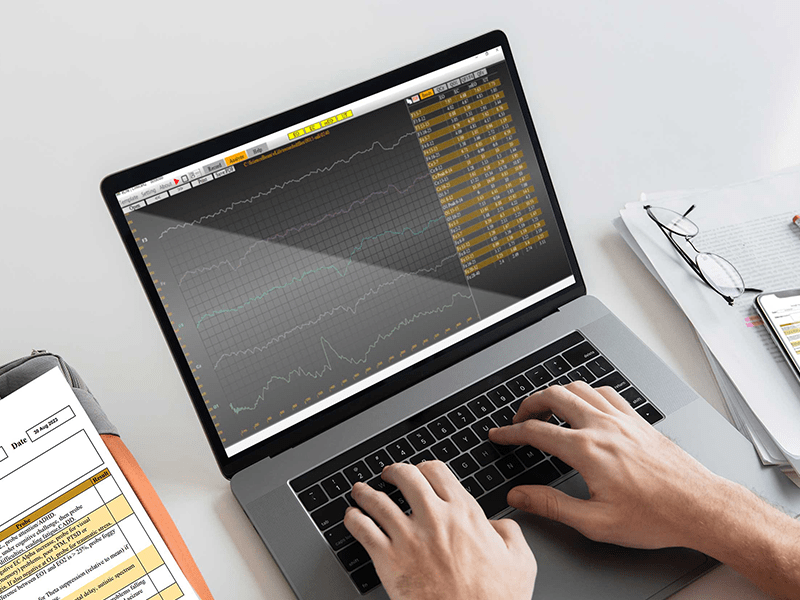

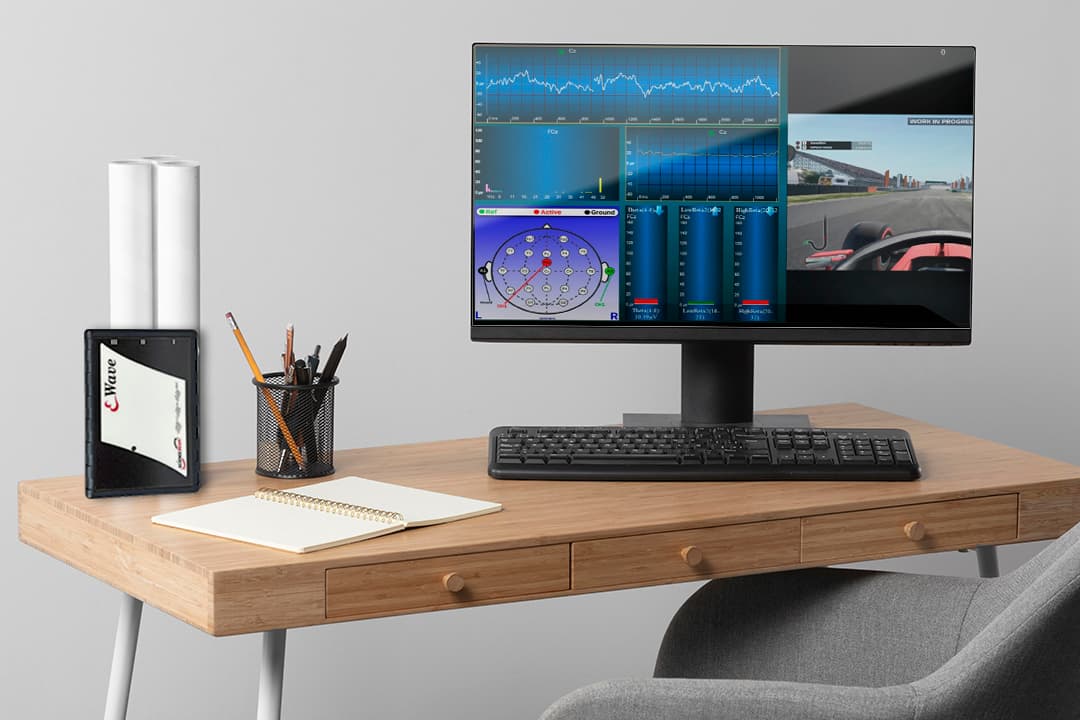

eLife Software interface for eWave 8

eLife Neurofeedback Software

Design, run and evaluate neurofeedback protocols in one workspace.

eLife is the core software platform for eWave8, providing more than signal display. It is a complete tool for designing, running and evaluating neurofeedback and biofeedback protocols in one clinical workspace.

  • — Custom protocol design for each client
  • — Precise Threshold and Reward configuration
  • — Adjustable visual and auditory feedback
  • — Automatic data analysis
  • — Session storage and comparison
  • — Clinical PDF report generation
  • — Compatible with games, video and music
  • — Robot control via brain signals

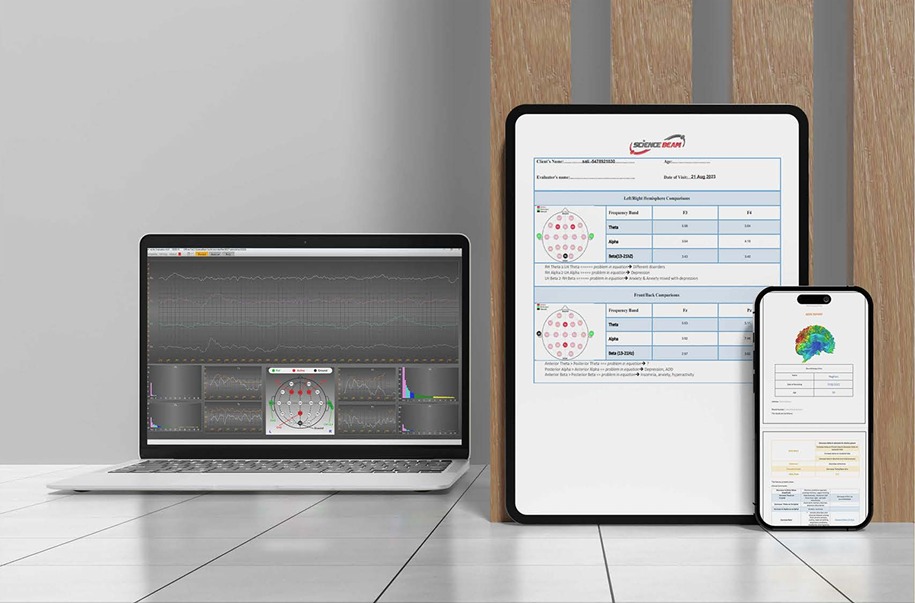

EEG Assessment Tools

Fast, accurate EEG assessment tools

Clinical-Q EEG Assessment

Rapid EEG clinical assessment

Fast evaluation of key brain regions with automatic analysis of abnormal patterns for clinical assessment.

  • — Automatic analysis of abnormal EEG patterns
  • — Guides therapeutic protocol selection

Mini-QEEG Screening

Quick quantitative EEG screening

Rapid quantitative EEG assessment for screening and treatment monitoring in clinical practice.

  • — Automatic PDF report generation
  • — Suitable for follow-up and research

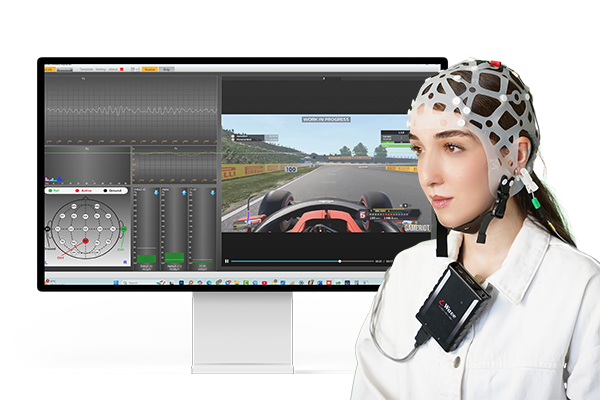

Therapeutic Neurofeedback Feedback

Play, watch or listen by Interactive neurofeedback guided by brain signals

During a neurofeedback session, the patient plays a game, watches a video or listens to music while feedback is guided by the brain's electrical signals.

Game, film and music neurofeedback mode

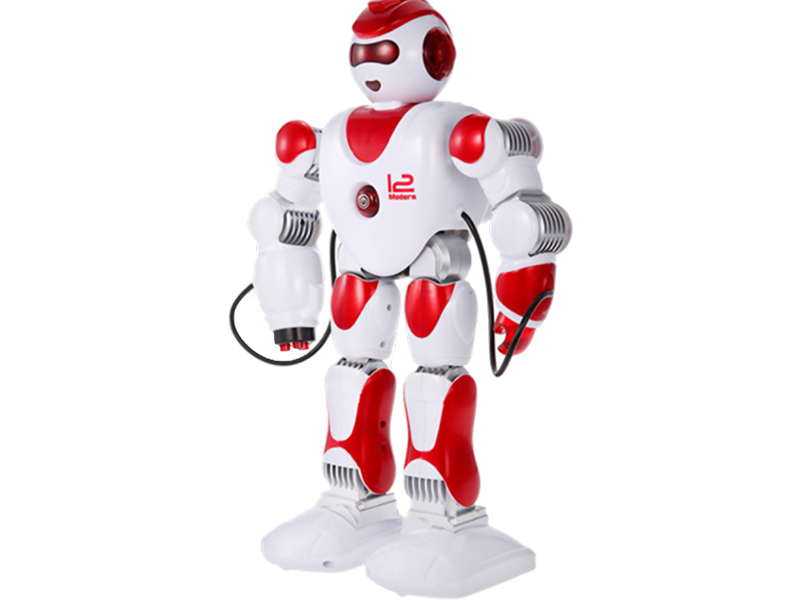

Robot neurofeedback controlled by EEG signals

Robot Neurofeedback

Control a robot with your mind.

Instead of video or music, the patient controls a real robot directly using their brain signals.

  • — EEG signals converted directly into robot movement commands
  • — Physical interaction with the robot maximizes focus and patient engagement
  • — Ideal for children with ADHD — dramatically increases treatment motivation

Technical Specifications

Advanced EEG technology in a compact wireless platform.

eWave 8 delivers high-precision 8-channel EEG acquisition, wireless connectivity and integrated physiological sensors in a lightweight portable device.

EEG channels
8 high-precision channels
ADC resolution
24-bit
Sample rate
1 KS/s (1,000 samples/sec)
Digital I/O
2 input + 2 output channels
Dimensions
117 × 66 × 25 mm
Weight
138 g
Wireless
Bluetooth — up to 10 meters
Battery
Rechargeable — up to 15 hours
Certifications
ISO 13485, CE Certified, Ministry of Health Approved
Warranty
18 months
Integrated sensors
GSR, BVP/HR, skin conductance, temperature
BioSense module
Respiration, Temperature, BVP, GSR, EMG, Pelvic floor probes
Software
eLife — signal analysis and protocol design
